Ultium Motion
Wearable 3D Motion Capture

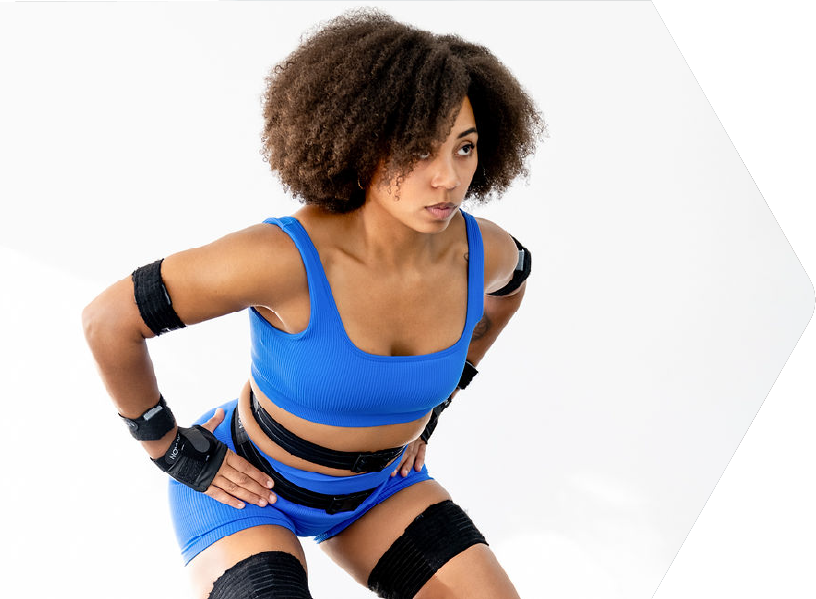

Ultium Motion, Noraxon’s next-generation inertial motion capture system, is equipped with a state-of-the-art sensor design that delivers accurate & reliable kinematic measurement for all types of movement – including high velocity and high impact conditions – while maintaining the advantages of the multi-device myoRESEARCH software platform through the universal connectivity of the Ultium receiver.

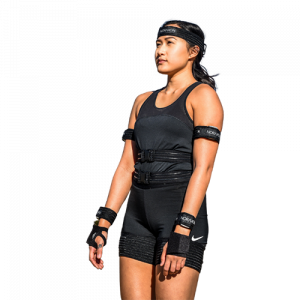

The small water-resistant sensors and updated straps allow for more natural movement to be captured while key technological advantages are sustained, including 10+ hour battery runtime, lossless data capture, and robust wireless communication.
With the Ultium Motion system, users will be able to capture 3D kinematics, acceleration, and joint trajectories for the purpose of measuring changes in movement patterns during a variety of applications. Ultium Motion is also available in the Ultium Portable Lab.
| MAXIMUM # OF MOTION SENSORS | 16 |
| MAXIMUM OUTPUT RATE | 400 Hz |
| ORIENTATION ANGLE ACCURACY | +/- 0.25 degrees (pitch/roll); +/- 1.25 degrees (heading) |
| ANATOMICAL ANGLE ACCURACY | +/- 1.0 degrees (static); +/- 2.0 degrees (dynamic) |
| ANGULAR VELOCITY (GYROSCOPE) | +/- 7000 degrees/sec; Internal Sampling Rate 1600Hz |
| ACCELERATION (ACCELEROMETERS) | +/- 200 g; Internal Sampling Rate 1600 Hz |
| MAGNETIC FIELD (MAGNETOMETERS) | +/- 16 Gauss; Internal Sampling Rate 100 Hz |
| OPERATIONAL BATTERY RUNTIME | > 8 hours |
| RECHARGE TIME | < 4 hours |
| Motion Sensor Dimensions | 1.75" L x 1.3" W x 0.48" H (4.45 cm L x 3.3 cm W x 1.22 cm H) |
| Weight | Less than 0.67oz (19g) |
- IMU Technology Overview
- Overhead Throwing Study
- myoMOTION Validation Study
- Using MyoMotion Virtual FootSwitch
- Using myoMOTION Object Sensors
- myoMOTION 5.16 Firmware
- Ultium Motion User Manual
- Ultium Motion Quick Start Guide
- Noraxon USB Driver
- MyoMotion System User Manual
- Calibration Adjustment Tool User Manual
- Calibration Adjustment Tool Quick Start Guide
Required Software Module
myoMOTION™
The myoMOTION™ software module features a skeletal avatar and streaming of anatomical joint angles, orientation angles, and acceleration data. Real-time data is automatically synchronized in an all-in-one analysis, enabling detailed human movement insight for performance enhancement, injury recovery or research metrics.
